Masterscreed MS40/36
Superscreed Head Attachment

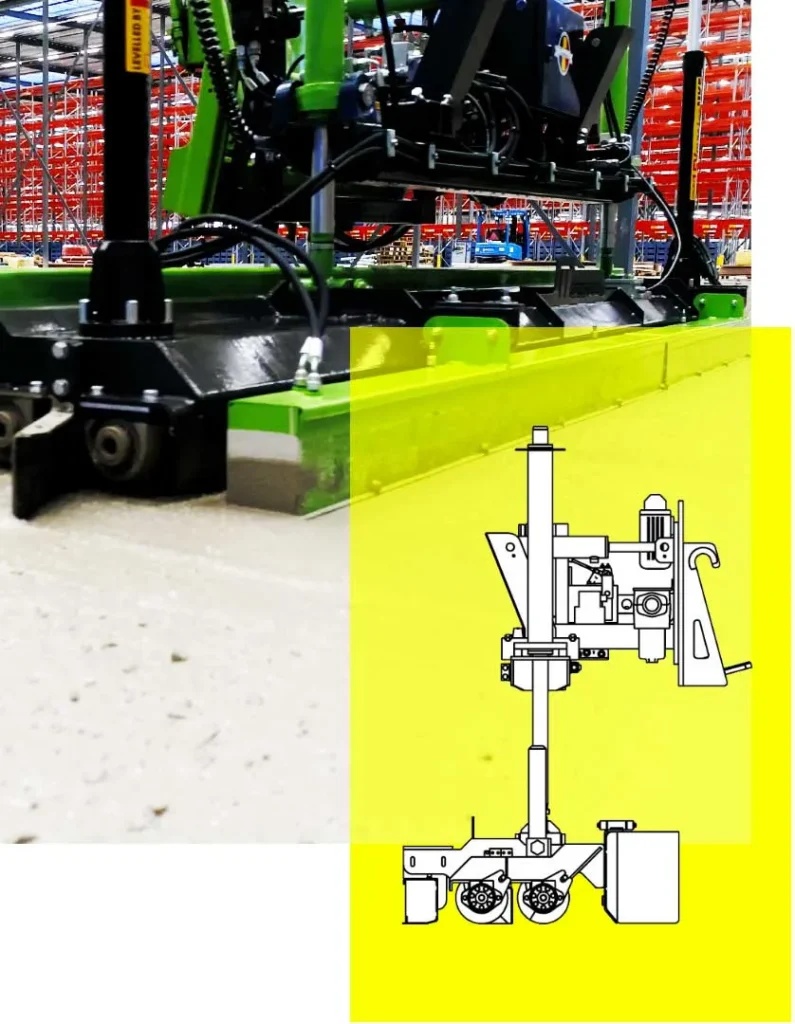

The MS40/36 screed head attachment transforms your telescopic machine into an automated state-of-art leveling screed!
Quick connection and easy, automated operation, with ultimate performance.
The MS40/36 screed head attachment (Patent GB2585519 and US11479928) is a World 1st innovation which incorporates our technology from our purpose built machine into our line of attachments. With quick connection to fit most telescopic or boom machinery, it makes a great investment, enabling your machinery to be transformed into a state-of-the-art leveling screen with precise performance. It saves the outlay of large traditional screeds, maintenance and transport costs, and has the added benefit of being adaptable to rental machinery.

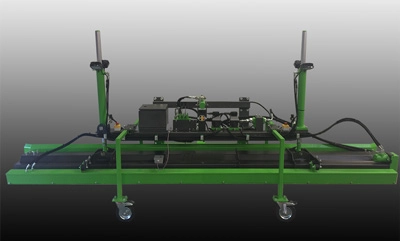

MS40 Screed head:
- The MS40 attachment is completely automated, offering high production output with superior accuracy at MS40 4.2m (14ft) wide. It features a plow, auger, roller and vibrating beam for ultimate compaction, great for SRFC or pervious concrete. It is very easy to operate, user-friendly via a wireless 7” color touchscreen display, with full visualization allowing the operator to fine tune and make adjustments for easy operation.
MS40 Scread Head Specifications:
- Features: plough, auger, roller and vibrating plate
- Operating system: LEVmaster Ultimate operating system with display diagnostics
- Laser receivers: Trimble LR410 x2
- Pressure washer: 3000psi

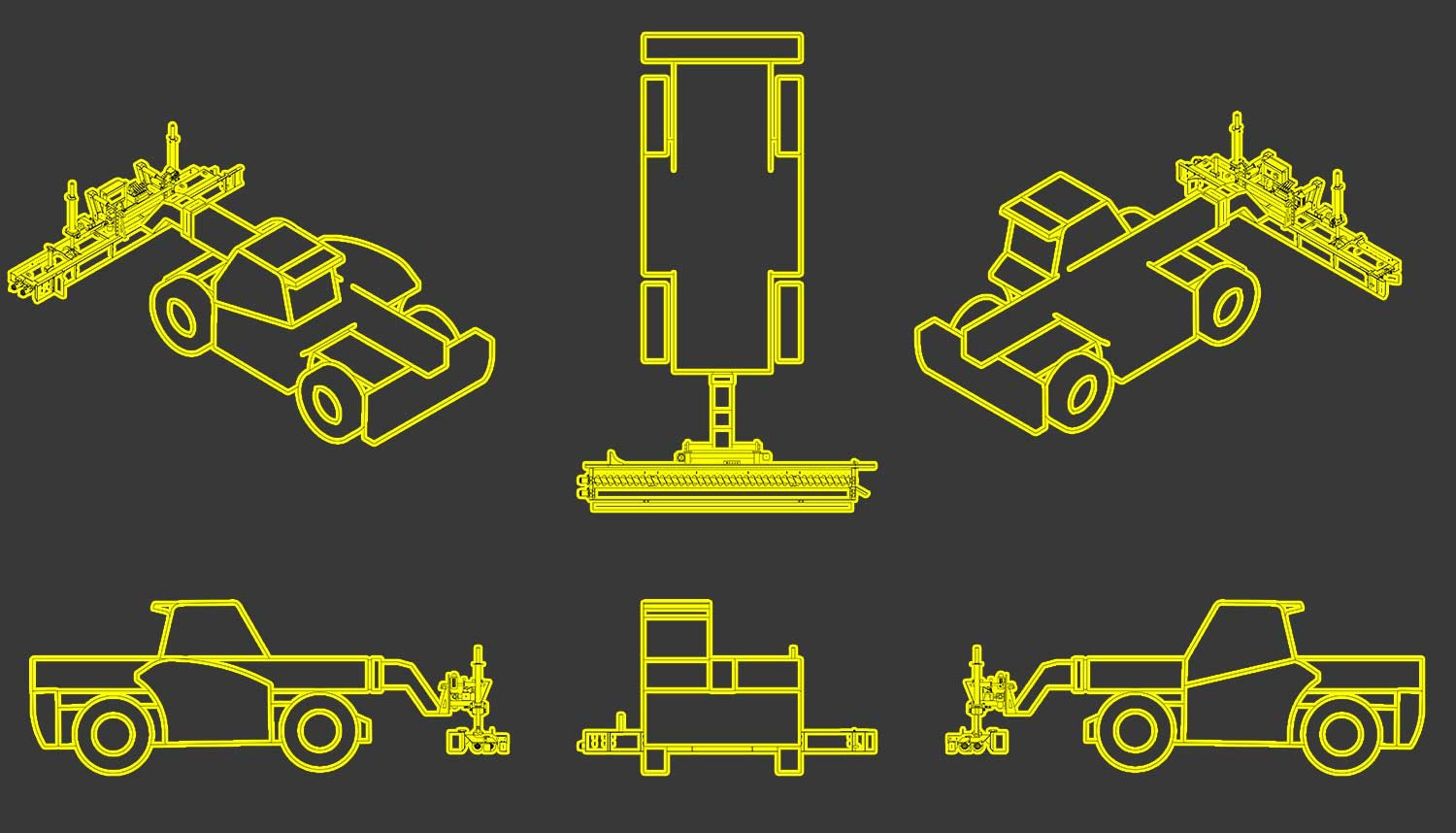

- Connection: quick adaption for any model telescopic handle or boom lift machine
- Operation control: 7” display wireless touchpad with colour visualisation
- 3D ready, GPS and sonar tracer (optional)
Weight 600kg (1300lb)
MS36 Screed head:
- The MS36 attachment is completely automated, offering high production output with superior accuracy at MS36 3.6m (12ft) wide. It features a plow, auger, and vibrating beam for ultimate compaction, great for most applications. It is very easy to operate, user-friendly via a wireless 7” color touchscreen display, with full visualization allowing the operator to fine tune and make adjustments for easy operation.
MS36 Scread Head Specifications:
- Features: plough, auger, and vibrating plate
- Operating system: LEVmaster Ultimate operating system with display diagnostics
- Laser receivers: Trimble LR410 x2
- Pressure washer: 3000psi
- Connection: quick adaption for any model telescopic handle or boom lift machine
- Operation control: 7” display wireless touch screen with color visualization
- 3D ready, GPS and sonar tracer (optional)
- Weight 500kg (1100lb)
Why Choose MS36/40
Saves the outlay of large traditional screeds, maintenance and transport costs.

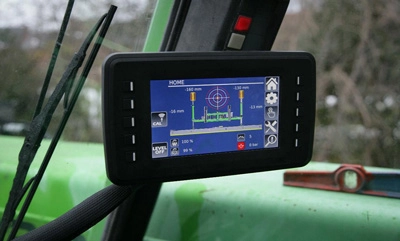

Levmaster Ultimate
01
The LEVmaster Ultimate is an advanced operating system which allows the operator greater control, fine tuning and feedback with live data recording and world wide global GPS for ultimate support.
Easy Loading
02
The MS40/36 is fitted with four leg supports for storage, easy maneuverability, and connection to the machine. Support legs can be easy removed for work application and re attached for storage.

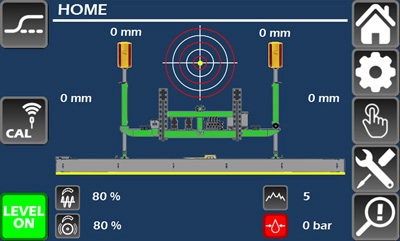

Touch Screen Interface
03
The MS40/36 is controlled via wireless Bluetooth with a 7″ colour touch screen or button display. These features allow the operator to utilise the screed head attachment and make any adjustments whilst moving.
Length
4.2m (14ft)
Width
Height
1.6m (5’2”ft)
600kg (1300lb)
