Masterscreed MS550
Automated Laser Guided Screed

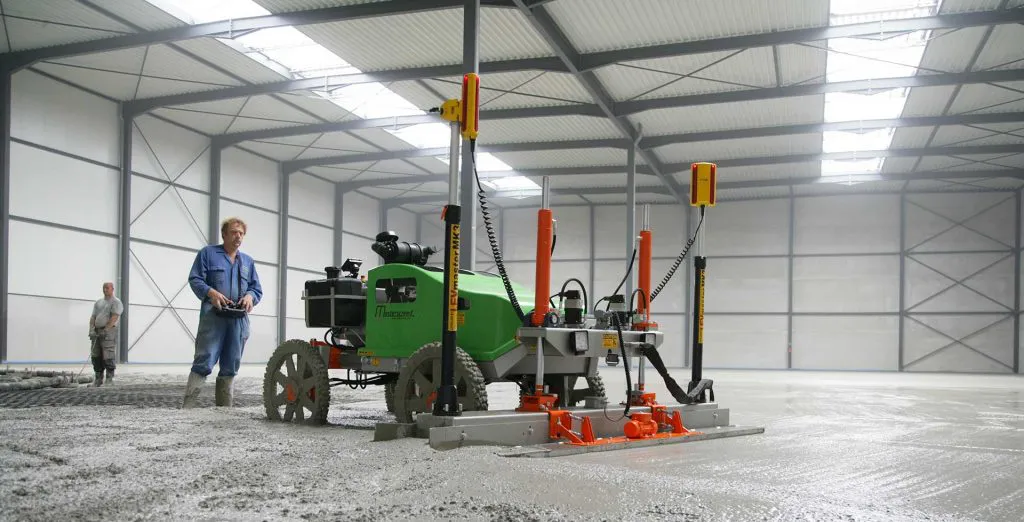

The MS550 is the world’s first wireless radio control drive-in automated concrete screed!
Our original drive-in screed fitted with wireless radio control was a game changer allowing the operator to be in the best position and can view job from any angle whilst some distance from the machine, for less noise and not inhaling any emissions.
- The MS550 design is strong, constructed from premium materials.
Provides the ultimate traction with excellent weight distribution, damping element, high resistance to wear, and high dimensional stability for minimal disturbance and footprint left in the concrete.
The MS550 is equipped LEVmaster Ultimate operating system for the ultimate in level control. Fitted with high speed and high accuracy valves, which helps reduce lag time and improves floor tolerance and flatness.
This bolt-on accessory enables contractors to add our unique second MX wheel system, which provides additional support and weight distribution for steel mesh/ rebar reinforcement or steel decking, and is easy to remove and clean.
MS550 Specifications:
Engine: Honda GX690 22.1HP (16.5kw) or GX800 25hp (18.9kw)
Drive System: 4WD Hydraulic
Steering System: 2 Wheels Hydraulic Height: 4’ (1.2m)
Width: 3’ 6” (1.05m) *Transport Length: 8’ 2” (2.45m)
Weight: 1,250lbs (550kg) *Dry weight fuel tank: 6.6 Gallons (25L)
Elevation Control: LEVmasterTM System
Diagnostic: Hydraulic, Electrical and Laser via 7” colour display machine operation control: Wireless Remote
Laser Receivers: Trimble® 2 x LR410 • 3D capable, GPS: Optional
Pressure Washer: 2000psi (optional)Robotic automated Laser Guided Screed
Length
2m (6.5ft)
Width
1.2m (4ft)
Height
1.6m (5’2”ft)
Weight
355kg (782 lb)
