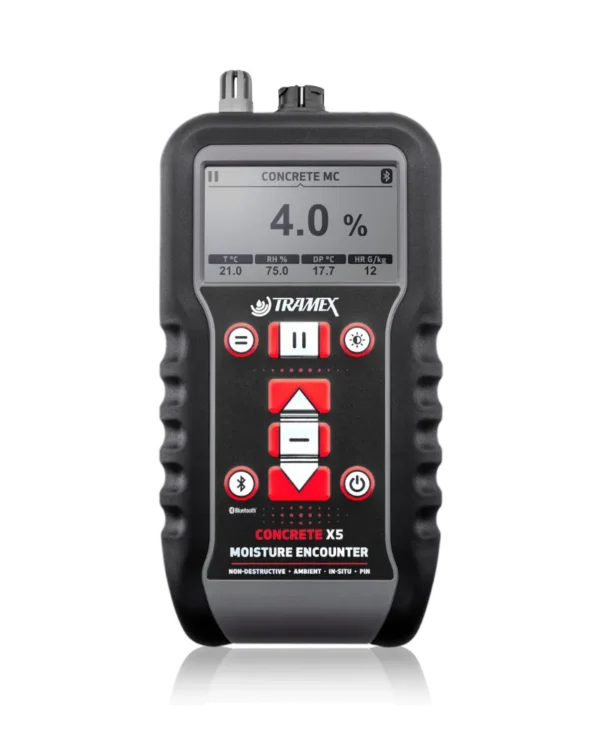

Tramex CMEX5 Meter

£655.00

Description

Specifications

  • Size: 160mm x 85mm x 38mm (6.3″ x 3.5″ x 1.5″)
  • Construction: ABS Body
  • Display: Analogue
  • Depth of penetration: approx. 20 mm (¾”)

Measuring range

  • Moisture Content for Concrete 0 to 6%
  • Comparative for Gypsum floor screed 0 to 10
  • Reference scale 0 to 100

Contents

Description

Tramex CMEX5 Meter has 4 measurement modes:

Non-destructive test (NDT) mode

The Tramex CMEX5 Meter is a non-destructive digital multi moisture meter for concrete floors and slabs;

providing instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline.

The CMEX5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings as per ASTM F2659.

Hygrometer mode

The built-in Ambient Relative Humidity Sensor measures Ambient Relative Humidity, Temperature, Dew Point, and Humidity Ratio (or Mixing Ratio) of the environment.

Equilibrium Relative Humidity mode

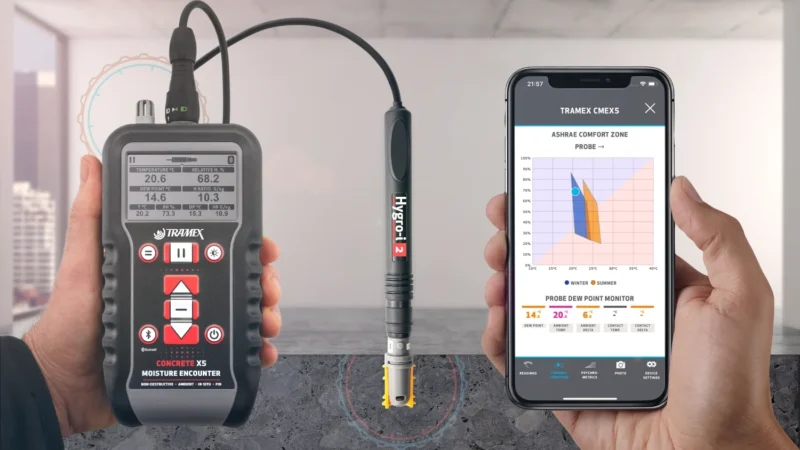

Using the optional plug-in Hygro-i2 RH probes, the Concrete Moisture Encounter X5 will measure Equilibrium Relative Humidity, Temperature, Dew Point and Humidity Ratio in structural materials.

A structural material such as a concrete slab can be tested using the in-situ method or RH Hood methods.

Relative Humidity Probes can also be used for ambient RH measurements within air spaces.

PIN Meter mode

The Concrete Moisture Encounter X5 becomes a resistance type meter and measures the percentage moisture content (%MC) of wood when used with the optional plug-in PIN meter.

Brand

Tramex

Tramex at Screed Warehouse is the international leader in the design and production of pin and pinless moisture meters, scanners, relative humidity sensors and data logging systems with a reputation for the highest standards in quality and innovation.
Tramex Products

Technical Information
