Tramex Concrete Determinator Kit

£715.00 exl. VAT

Per Unit

Description

SKU TCDK Category
  • Instant and Accurate
  • Designed to work in the same drill-hole made for the F2170 test.
  • Eliminate confusion between in-situ Relative Humidity tests and surface Moisture Content tests.
  • Determine if moisture is coming from below or above the concrete slab surface.
  • Determine the type and extent of mitigation if needed.
  • Reusable, Extendable, and requires no plastic hole liners.
  • Can be used in conjunction with Tramex Concrete Moisture Encounters CME5CMEX5, (CME4 and CMEX2)

You May Also Need...

Contents

Description

Determinator Kit

Tramex Concrete Determinator kit, Moisture Probe extends the capabilities of the Tramex Concrete Moisture Encounter range, providing in-situ Moisture Content readings in a Tramex Unified Moisture Content Test Method of quantitative Moisture Content measurements in both the top 19mm (¾ inch) layer and within the body of concrete floors and slabs down to an extendable depth of up to 100mm (4″). The Concrete Moisture Probe can be used with the CME5, CMEX5 and older Concrete

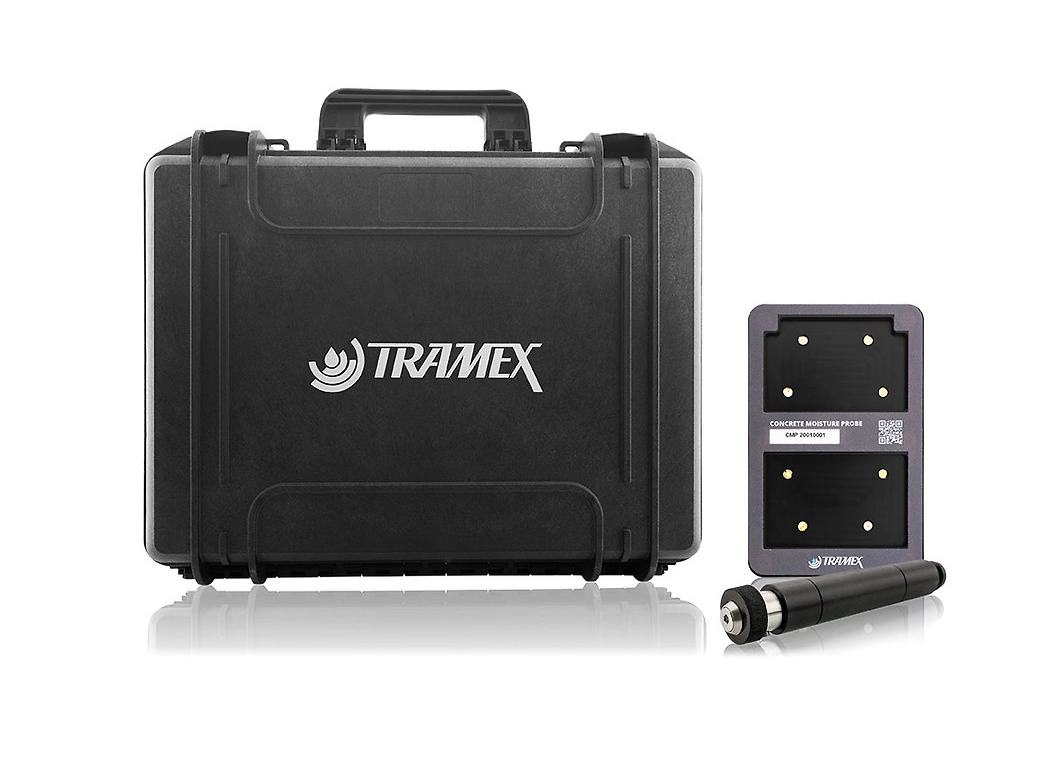

Moisture Encounters CME4 and CMEX2. The Determinator is supplied in a Tramex hard case with allocated space for your Tramex Concrete Moisture meter.

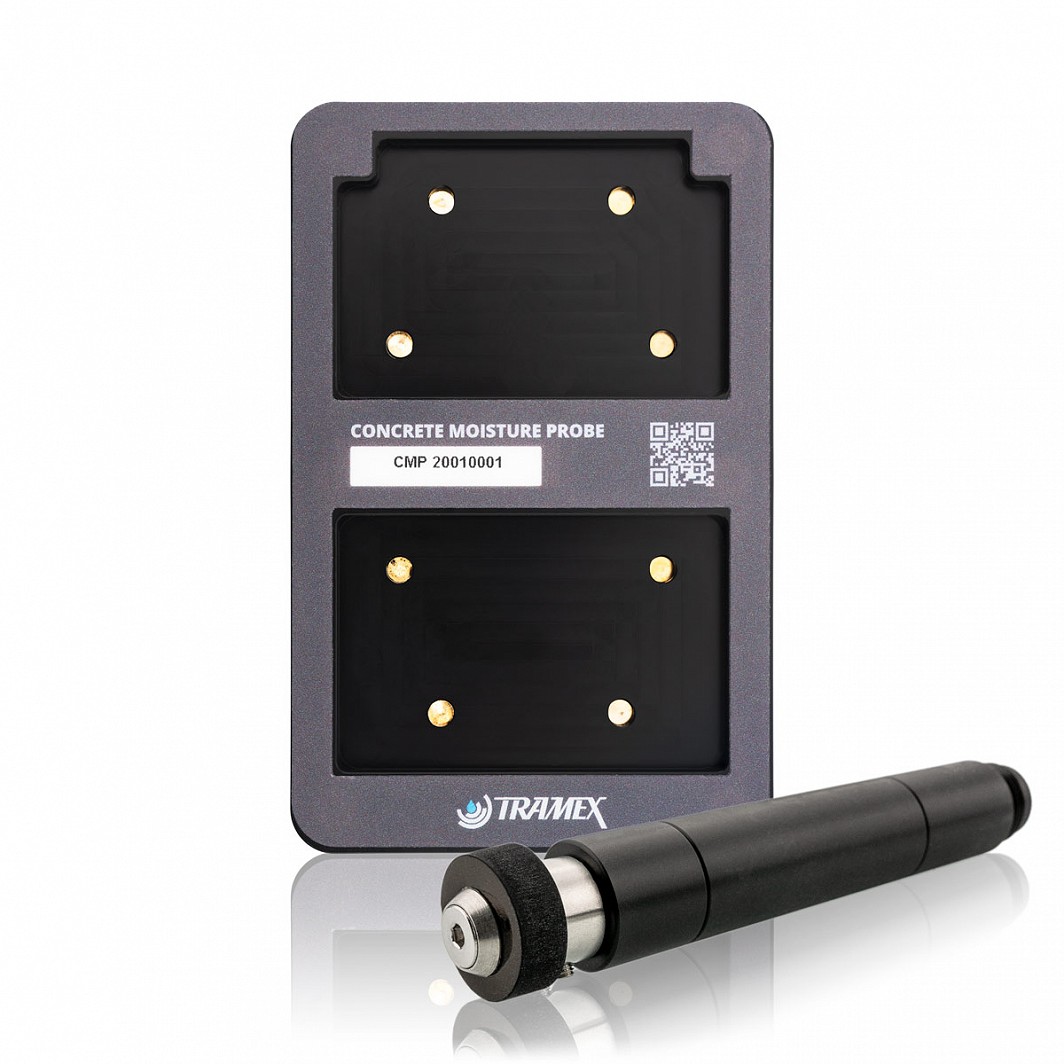

Moisture Probe

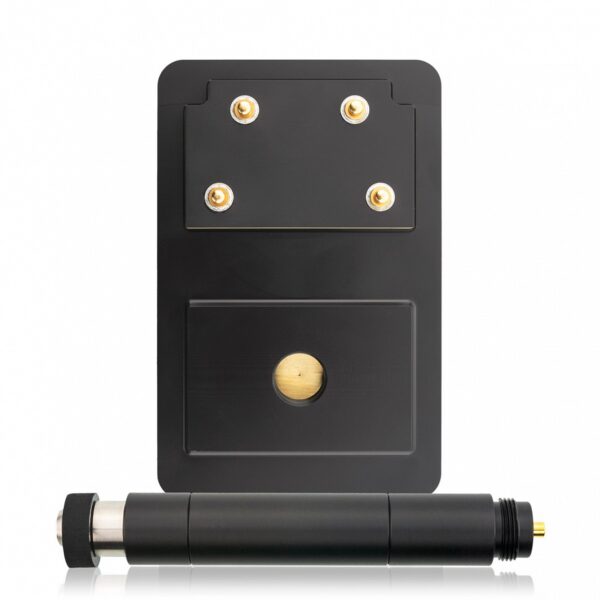

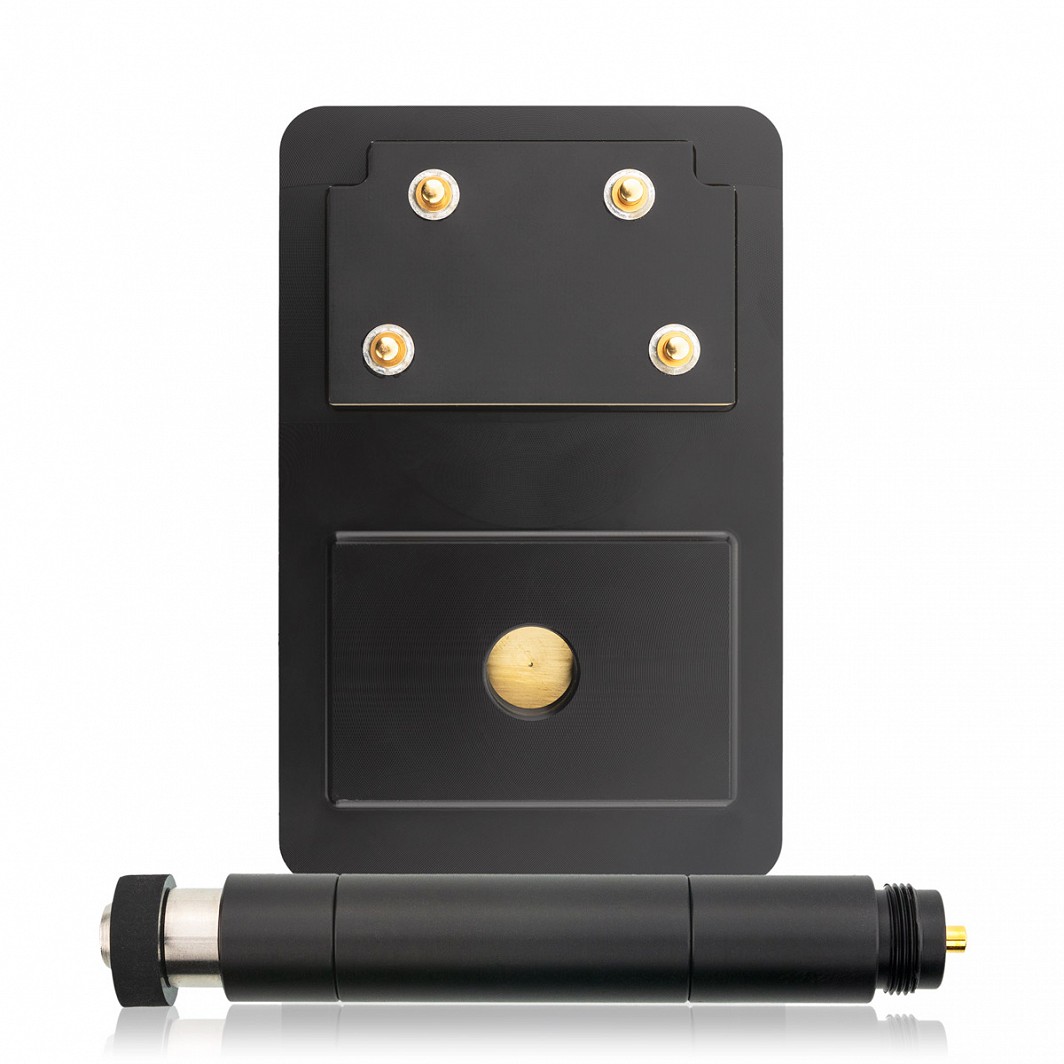

The Concrete Moisture Probe when used with Tramex CME instruments operates on the principle that the electrical impedance of a material varies with its moisture content. The CME instrument is pressed onto the CMP cradle which is pressed onto the material surface with the pins fully compressed and the probe inserted into the pre-drilled 19mm
(¾ inch) hole to measure/ detect the moisture content. The electrical impedance is measured by creating a low frequency alternating electric field between the electrodes and the probe, to a depth of up to 100mm (4”). This field penetrates the material under test. The very small alternating current flowing through the field is inversely proportional to the impedance of the material. The instrument detects this current, determines its amplitude and thus derives the moisture value.

Tramex Concrete Determinator Kit cradle should be flat on the slab surface and the Tramex Concrete Moisture Encounter placed and firmly pressed onto the cradle. The probe reads from the bottom, within the body of the slab, up to the surface.
